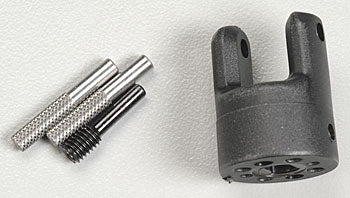

Yoke Brake w/Pins Revo (Part # TRA5457)

           This is the Brake Yoke w/Pins for the Traxxas Revo.
              It is use on the Center/Front Driveshaft Assembly.

FEATURES: Plastic Brake Yoke
          Steel Brake Pins(each knurled on one end)
          Steel Screw Pins

INCLUDES: One Brake Yoke
          Two Brake Pins
          One Screw Pin

REQUIRES: Assembly to the vehicle

SPECS:    Brake Yoke Outer Diameter:      18.5mm (.73")
          Brake Yoke Center Key Size:  4mm x 6mm (.17" x .24")
          Brake Yoke Length:                24mm (.95")
          Screw Pin Size:             4mm x 15mm (Threaded length-5mm)
          Brake Pin Size:             3mm x 20mm (.12" x .8")
COMMENTS: Brake Yoke Center is "keyed" to have a positive fit to the shaft.
